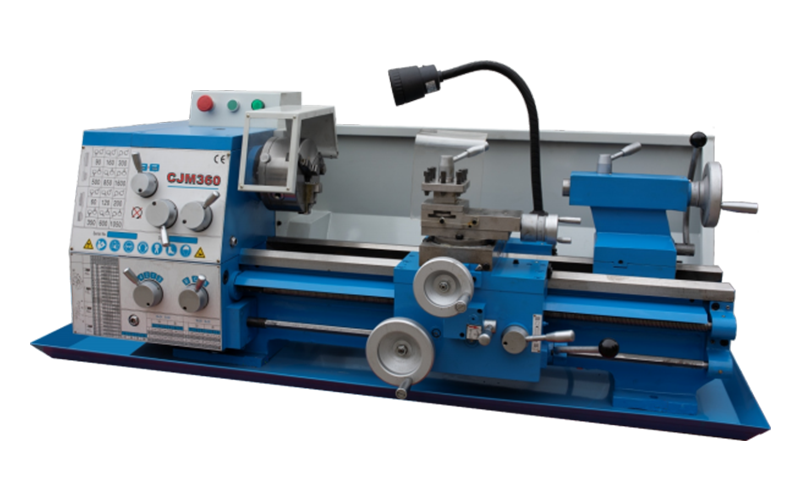

CJM360/600

CJM360/750

Max. swing over bed

360mm

Max. work-piece length

600mm

750mm

Max. swing over carriage

230mm

Main spindle diameter

38mm

Main spindle taper

MT. 5#

Max. cross travel of carriage

205mm

Max. travel longitudinal of toolpost

100mm

Metric threads range/ No

0.2 ~7.0mm/22

Imperial threads range/ No

21?2 ~48T. P. I/45

Module threads range/ No

0.2 ~ 3. 5M. P/21

Diametrical threading range/ No

8 ~ 120D. P/ 31

Toolpost longitudinal feeding per spindle rotation

0. 1 ~ 1.4mm/ r

Toolpost cross feeding per spindle rotation

0.045 ~0.6mm/ r

Max. travel of tailstock sleeve

90mm

Tailstock sleeve taper

MT.3#

Spindle speed steps

12

Main Spindle speed scope

60 ~ 1600 rpm

Main motor power

1. 1 kw

Net weights/Gross weights

370/420kg

390/440kg

Overall dimensions( L*W* H)

140×70×64cm

152×70×64cm

Packing dimensions (L*W* H)

150×76×77cm

163×76×77cm

3 -jaw chuck

Φ160

Chip tray

Machine Base

Belt

A type 864

Steady rest

Follow rest

Dead centers

MT.3#, 5#

4 -jaw chuck  Φ160/ Φ200

Flange plateΦ160/ Φ200

Chuck spanner

1  piece

Face Plate  Φ250

Thread dial indicator

Allen wrench

4#,5#,6#

Special optional change gears( 10)

Live center

Stud dead

12 - 14; 17 - 19

Coolant

Work light

Changing gears

36T

Digital readout

Optional motor 1. 5KW

MN  gears

2  piece

Optional Main spindle diameter Φ40. 5
